תיאור

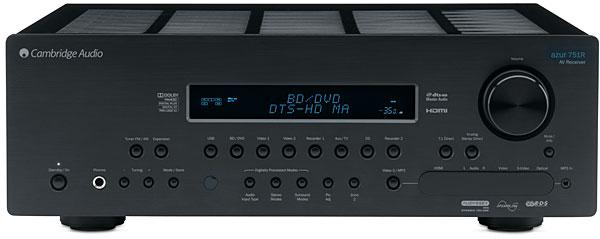

הרסיבר קולנוע ביתי 751R הרסיבר האולטמטיבי והאודיופילי החדש מסדרת Azur היוקרתית של חברת Cambridge Audio האנגלית.
הרסיבר יגרום לסאונד המוזיקה שלך, להשמע מדהים כמו סאונד הקולנוע שלך, סאונד שלא נשמע בעבר.
Home Theater
"If it could somehow leap off this page into your ears, you’d know you’re in the presence of greatness within the first five minutes of any dynamically and timbrally challenging content. The Azur 751R is worth every penny of its asking price."
USA, Spring 2013

רסיבר קולנוע ביתי Cambridge Audio 751R מפרט טכני:

Power output 200W RMS per channel, into 6 ohms (two channels driven)
170W RMS per channel, into 8 ohms (two channels driven)
120W RMS per channel, into 8 ohms (all 7 channels driven)
HDMI HDMI 1.4a, EIA/CEA – 861D, HDCP 1.1, ARC and 3D-TV/deep colour pass through supported
Architecture Cirrus Logic CS43122 24-bit 192kHz capable DAC for Front Left & Right
Cirrus Logic CS52526 24-bit 192kHz capable CODEC for surround channels + 24-bit 2 channel
A/D Conversion Two TI Aureus DA788 32-bit DSPs
Additional AD SP-21261 40-bit DSP performing 24bit/192kHz ATF Upsampling
Anchor Bay ABT2010 scaler
USB 1.0: 16-24-bit, 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
USB 2.0: 16/24-bit 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz
Audio Inputs 8 x line level analogue
Tuner (FM/AM)
7.1 multi-channel analogue input
1 x asynchronous USB audio input
5 x digital co-axial, 5 x digital optical
Video Inputs 6 x HDMI (5 x HDMI 1.4a, 1 x front panel HDMI 1.3c)
3 x Component Video
4 x Composite
4 x S-Video
Main Audio Outputs 7 Amplified Speaker Outputs
7.2 Preamp outputs
Main Video Output 2 x HDMI (1.4a), ARC through HDMI A
Zone 2 Outputs Surround back channels, 2.1 preamp audio outputs, component, S-Video and composite video outputs
Recording Audio Outputs 2 x Line Level Analogue
2 x Digital Co-Axial, 2 x Digital Optical
Other connections 1 1/4" / 6.35mm Headphone Output (32 To 600 ohms recommended)
3 x IR emitter outputs
1 x IR Receiver Input (un-modulated)
1 x IR Emitter Input (modulated)
1 x Zone 2 IR emitter input
1 x control bus input/output
2 x 12V trigger outputs
1 x RS232C
1 x IEC type mains inlet
THD <0.006% @1kHz Crosstalk <-80dB Frequency response 10Hz - 20kHz ±1dB S/N Ratio >90dB 'A' weighted
Max. power consumption: 1700W
Standby power consumption: <0.5W Dimensions (W x H x D): 430 x 150 x 420mm (5.9 x 16.9 x 16.5’’) Weight: 17.4Kg (38.3lbs)
